SSC1 Dual Infrared/White LED Pod

Features

• 850nm IR and visible white light in one side-by-side C1 dual bezel
• Sport Wide lighting with a red backlight on the visible-light side
• High and low IR modes with PWM and variable-voltage dimming
• Dedicated mounting bracket and hardware included
• Made in USA with Global Materials

Overview

Combine infrared and visible lighting in one mounting location with the Diode Dynamics C1 Dual IR LED Pod. Two C1 pods sit side by side in a single bezel, pairing an 850nm IR Wide light with a Sport White Wide light and red backlight.

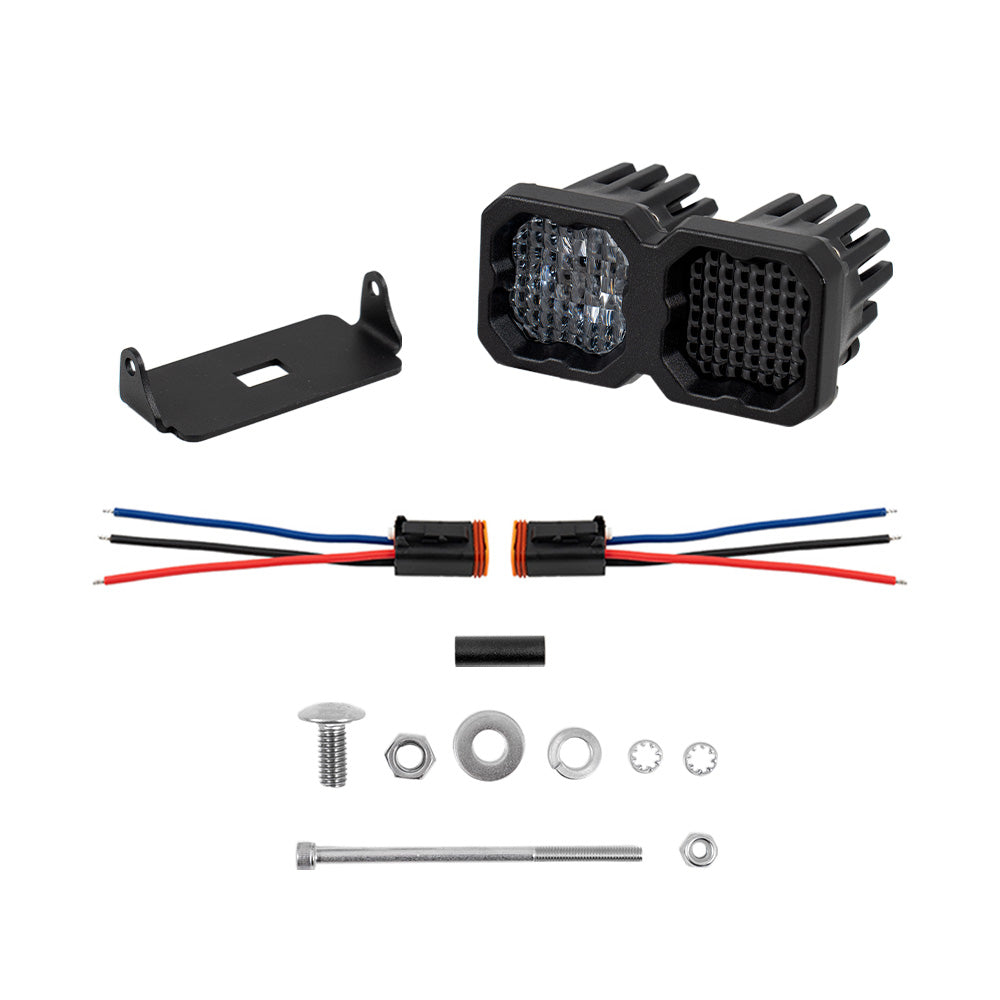

Built for Your Setup. The assembly operates on 9-16V systems. Plan wiring for both the IR and visible-light functions. One dual-bezel assembly with two C1 pods mounted side by side, not a pair of separately mounted lights. Mounting bracket and hardware are included.

Night Vision Compatibility. Match the wavelength to your equipment. 850nm may show a more noticeable red glow; 940nm offers a lower visible signature.

Proven Reliability. Developed through military field testing. Made in USA with Global Materials.

Infrared Safety. Infrared output may not be visible to the naked eye. Do not look directly into an operating infrared light.

Experience. For more than 20 years, Diode Dynamics has developed purpose-built automotive lighting, engineered, tested, and assembled by our team in the United States.

Specifications

• Adjustable Brightness: Yes
• Amperage Rating: IR side only: High: 0.1, Low: 0.08
• Bulb Technology: led
• Connector Type: DT 4-Pin
• LED Emitter: OSRAM IR
• Light Beam Pattern: WIDE
• Material: Sabic Lexan 121R IR Filter
• Measured Radiometric Output: IR side only: High: 0.9, Low: 0.6
• Mounting Hardware Included: Yes
• Optional Modes: High and low infrared output; visible white output and red backlight
• Peak Radiant Intensity: IR side only: High: 4.0, Low: 3.0 mW/sr
• Power Level: SSC1 IR Sport
• Prop 65 Yes/No: Yes
• Raw Radiometric Output: IR side only: High: 100, Low: 60 mW/sr
• Universal Or Specific Fit: UNIVERSAL
• Voltage: 9-16
• Wattage: IR side only: High: 1.5, Low: 1.0
• Wavelength: 0.00085
