940nm three-point IR pattern for vehicle identification through night vision
High and low IR modes with adjustable output for the viewing conditions

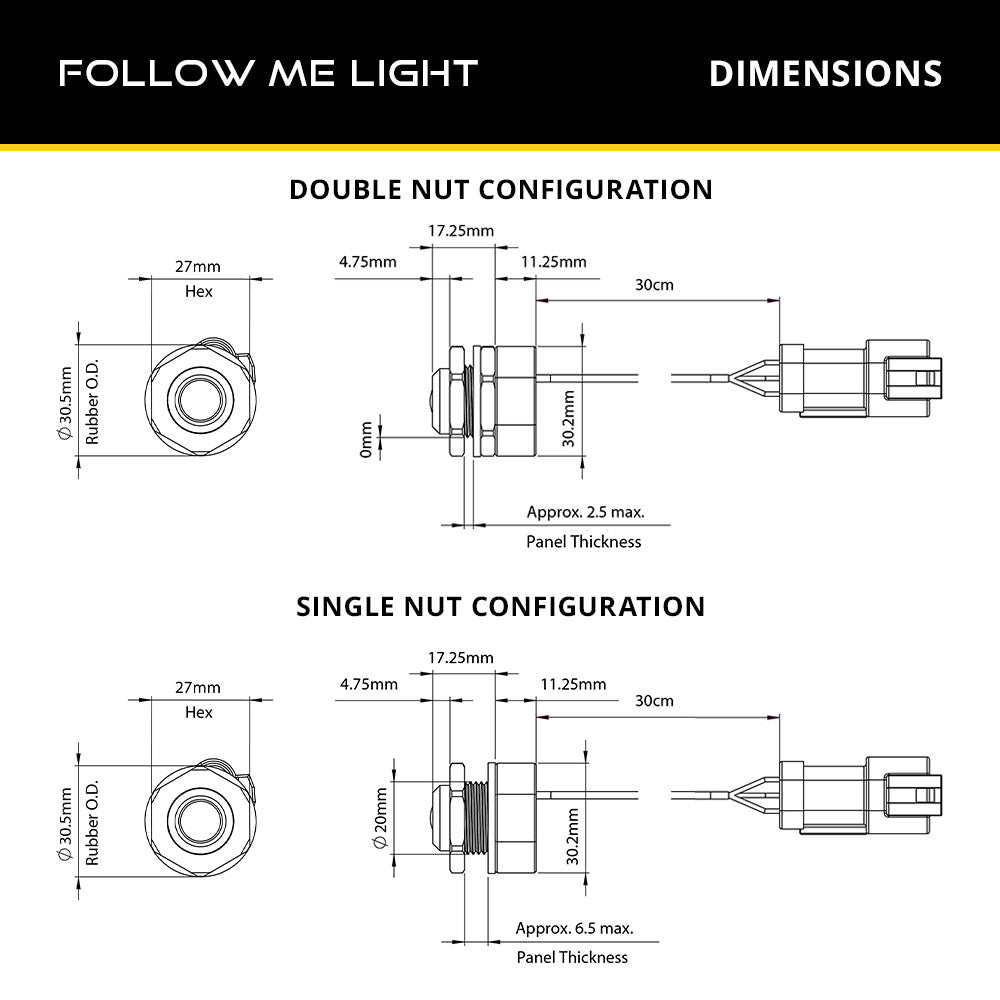

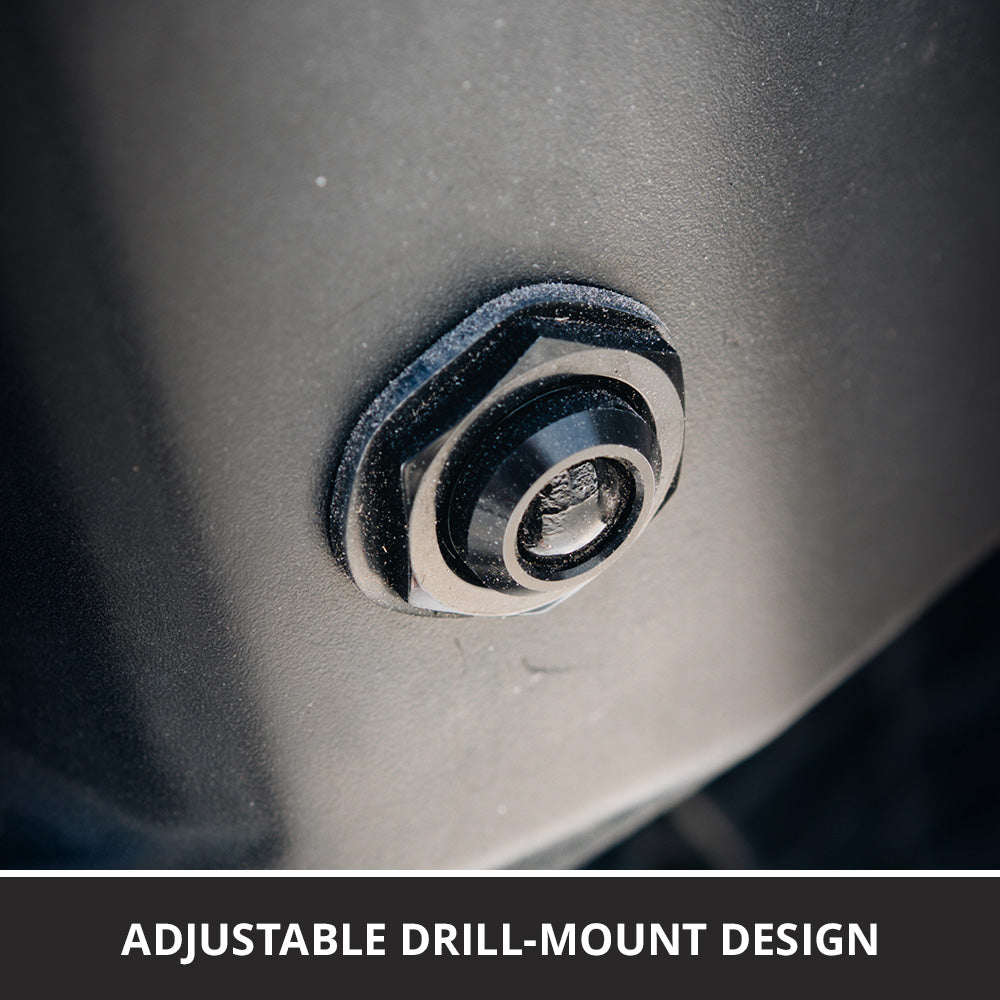

Drill-mount design with a removable inner jam nut for thicker mounting surfaces
IP67 intrusion protection and a Deutsch DT 3-Pin connector
Made in USA with Global Materials
Overview

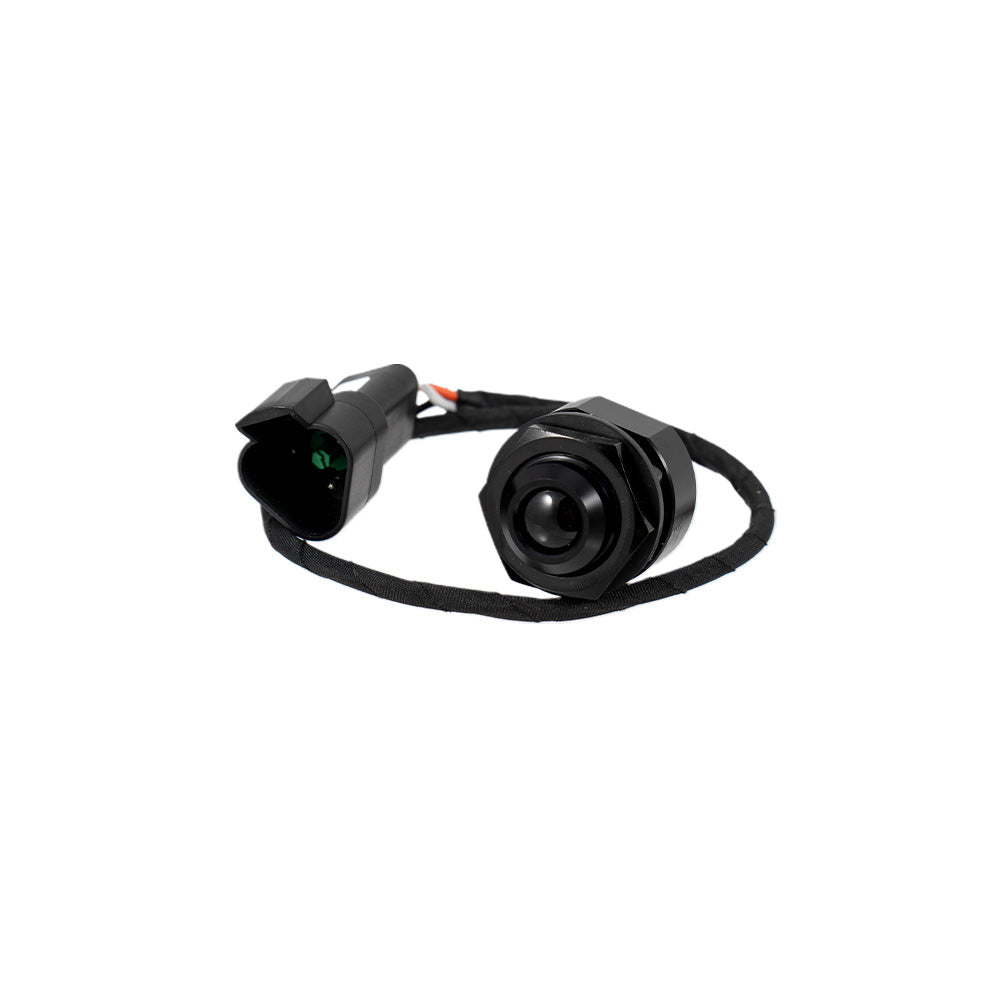

Keep a recognizable vehicle reference in view through compatible night vision equipment with the Diode Dynamics Infrared Follow-Me Light. Its three-point IR pattern supports vehicle identification and convoy spacing, in a compact drill-mount design.

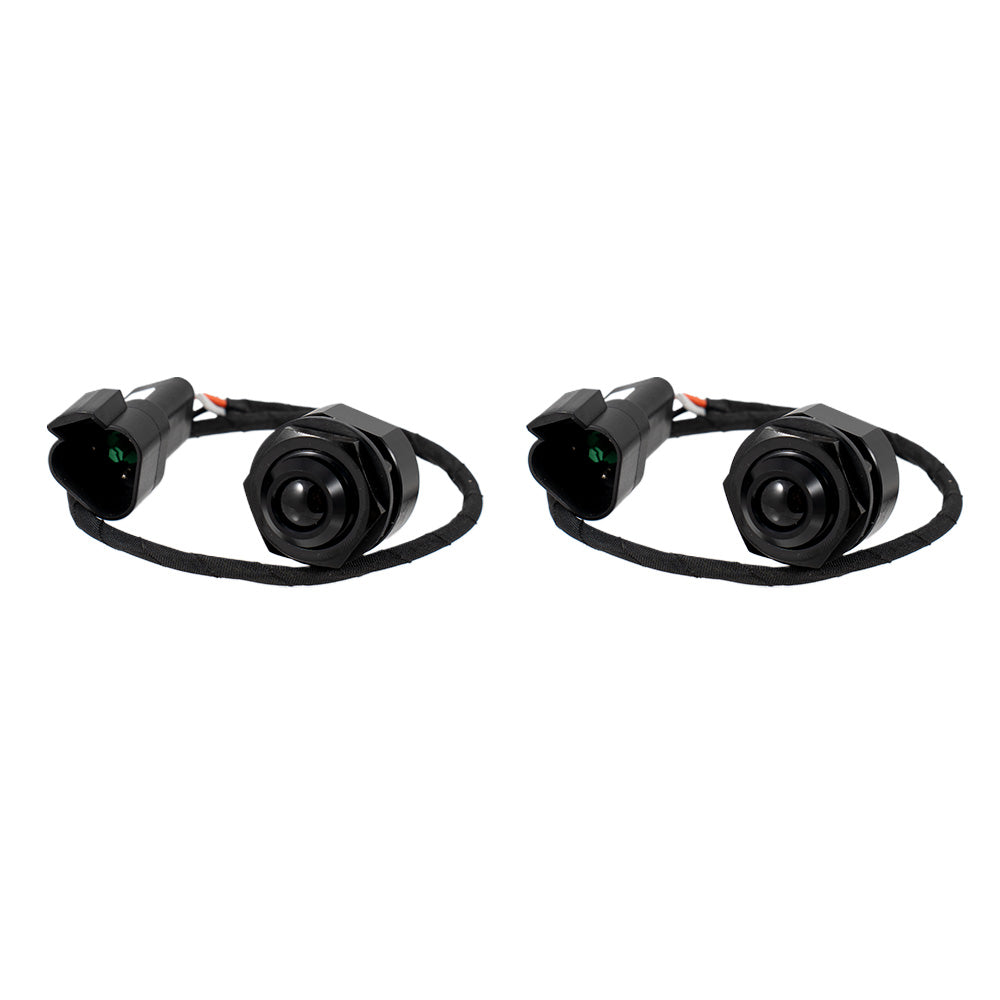

Built for Your Setup. The light operates on 9-16V systems and uses a Deutsch DT 3-Pin connection. Two lights supplied in this package.
Night Vision Compatibility. Match the wavelength to your equipment. 850nm may show a more noticeable red glow; 940nm offers a lower visible signature.
Proven Reliability. Developed through military field testing. Made in USA with Global Materials.
Infrared Safety. Infrared output may not be visible to the naked eye. Do not look directly into an operating infrared light.
Experience. For more than 20 years, Diode Dynamics has developed purpose-built automotive lighting, engineered, tested, and assembled by our team in the United States.
Specifications
Adjustable Brightness: Yes
Bulb Technology: led
Connector Type: DT 3-Pin
Cooling Method: Passive, no heatsink
Drilling Required: Yes
Intrusion Rating: IP67 Weatherproof
LED Emitter: Infrared
Material: Polycarbonate IR Filter, Aluminum Housing
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Optional Modes: High and low infrared output
Prop 65 Yes/No: Yes
Raw Radiometric Output: High: 2.5, Low: 0.6 mW/sr
Universal Or Specific Fit: UNIVERSAL
Voltage: 9-16
Wattage: High: 0.6, Low: 0.2
Wavelength: 0.00094
