Utilizes existing mounting points for simple installation.
Overview

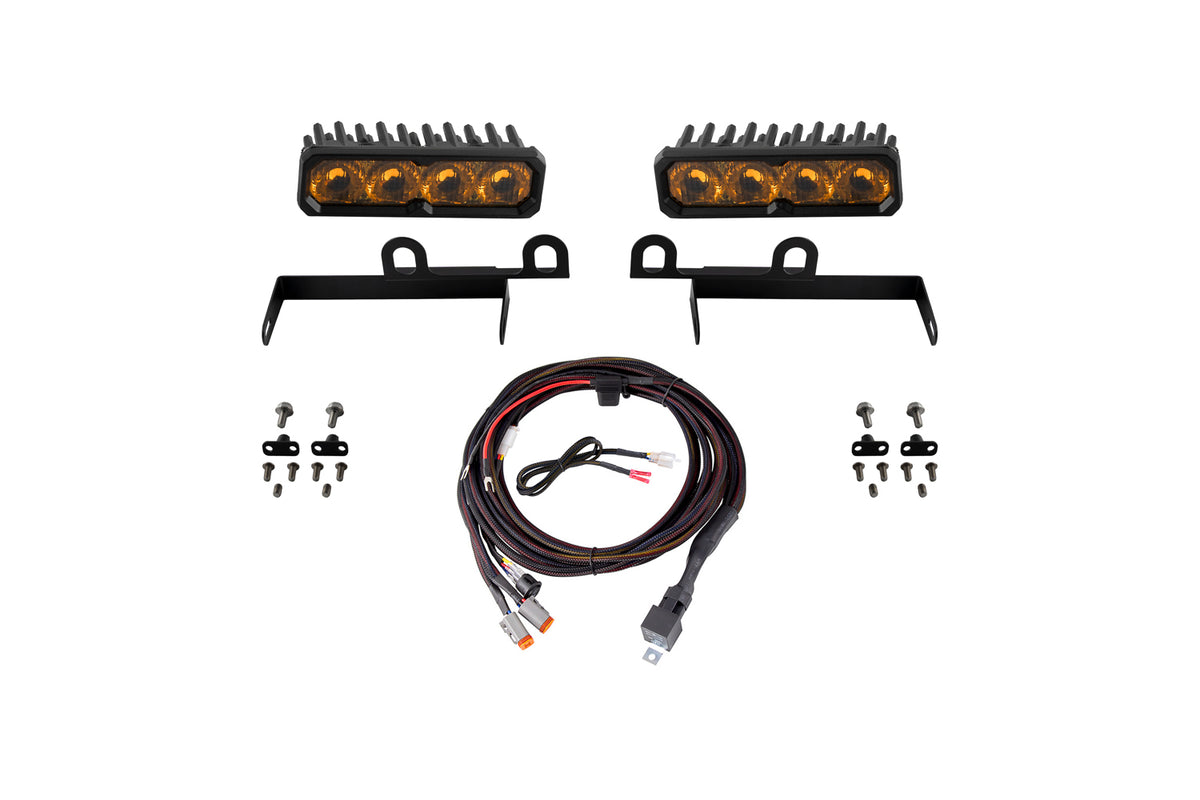

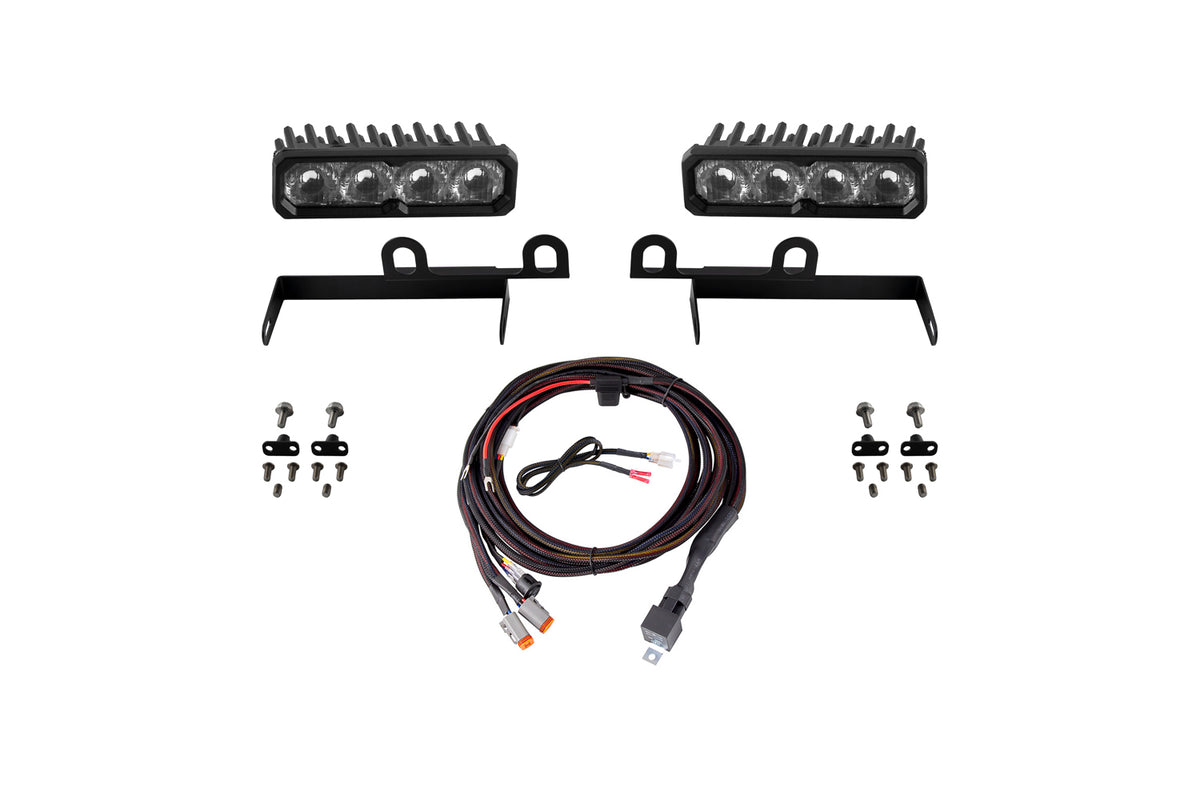

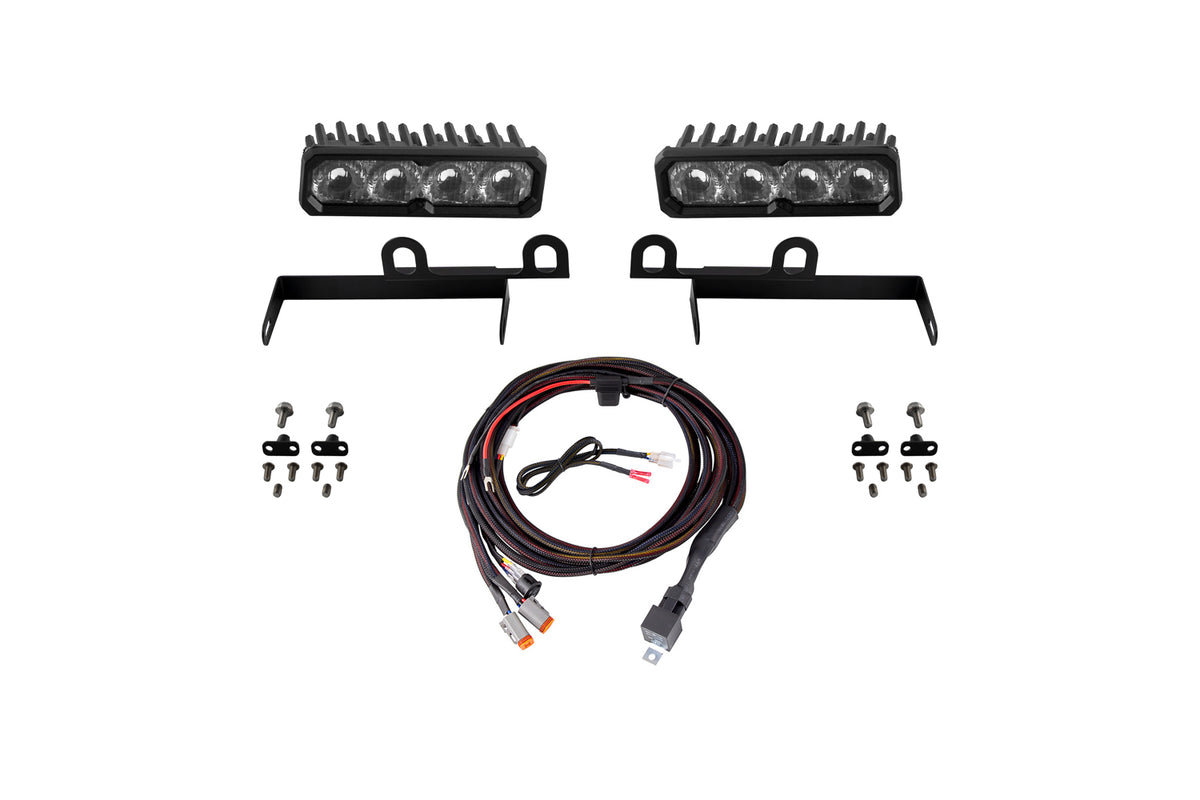

Perfect Fitment. The LED Driving Light Kit compatible with the Dodge Ram 2013-2018 from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6in Light Bars in the bumper openings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!
Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving or fog lights (Please check your local laws and regulations for aiming, installation, and applicability).

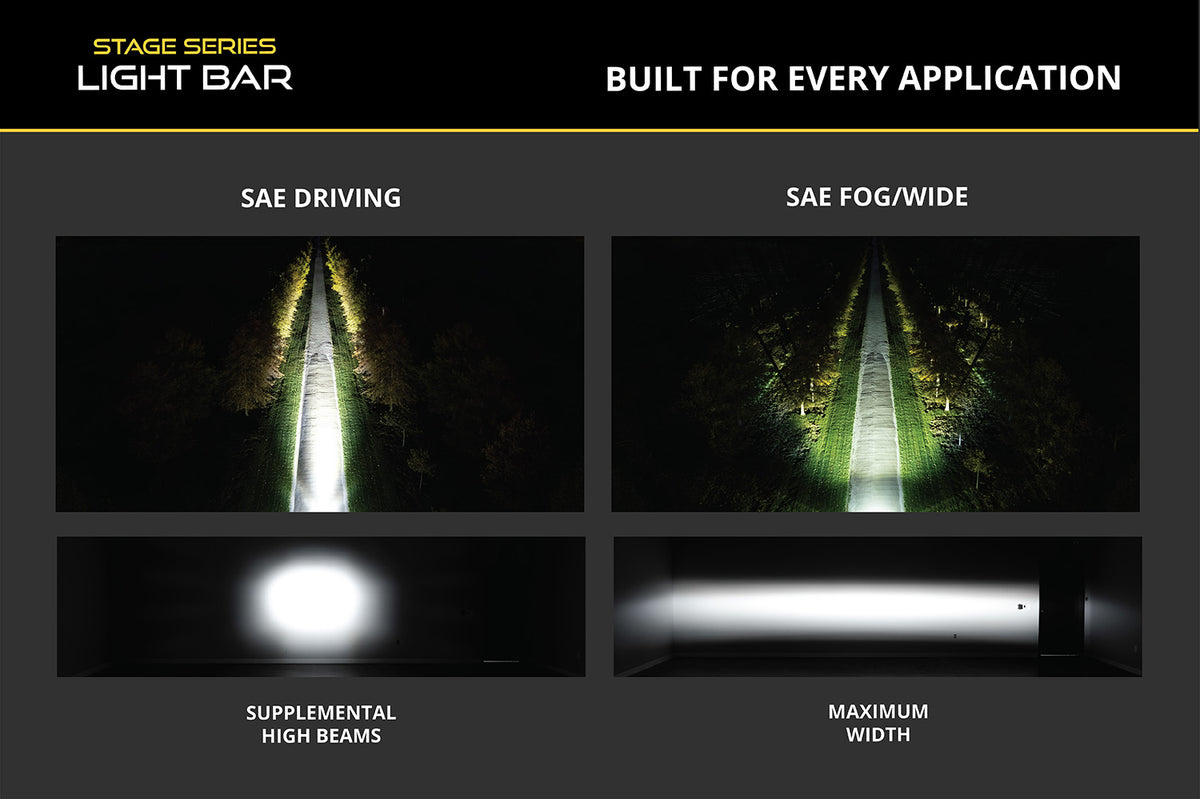

The Driving pattern was designed to supplement your high beams.
Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.
Specifications
Beam Angle: SAE Driving 20°x12°
Color Temp: 6000
Intensity (lux): 84500
Intrusion Rating: IP69K Waterproof High Pressure
Operating temperature: -40C to 85C (-40F to 185F)
Raw Output (lumens): 7920
Voltage: 9-30
Wattage: 40.5
