940nm infrared illumination for compatible night vision equipment
Pro power level with a Combo beam for width and distance
High and low IR modes with PWM and variable-voltage dimming
OSRAM IR emitters and an IR-filtering lens to reduce visible signature
Made in USA with Global Materials
Overview

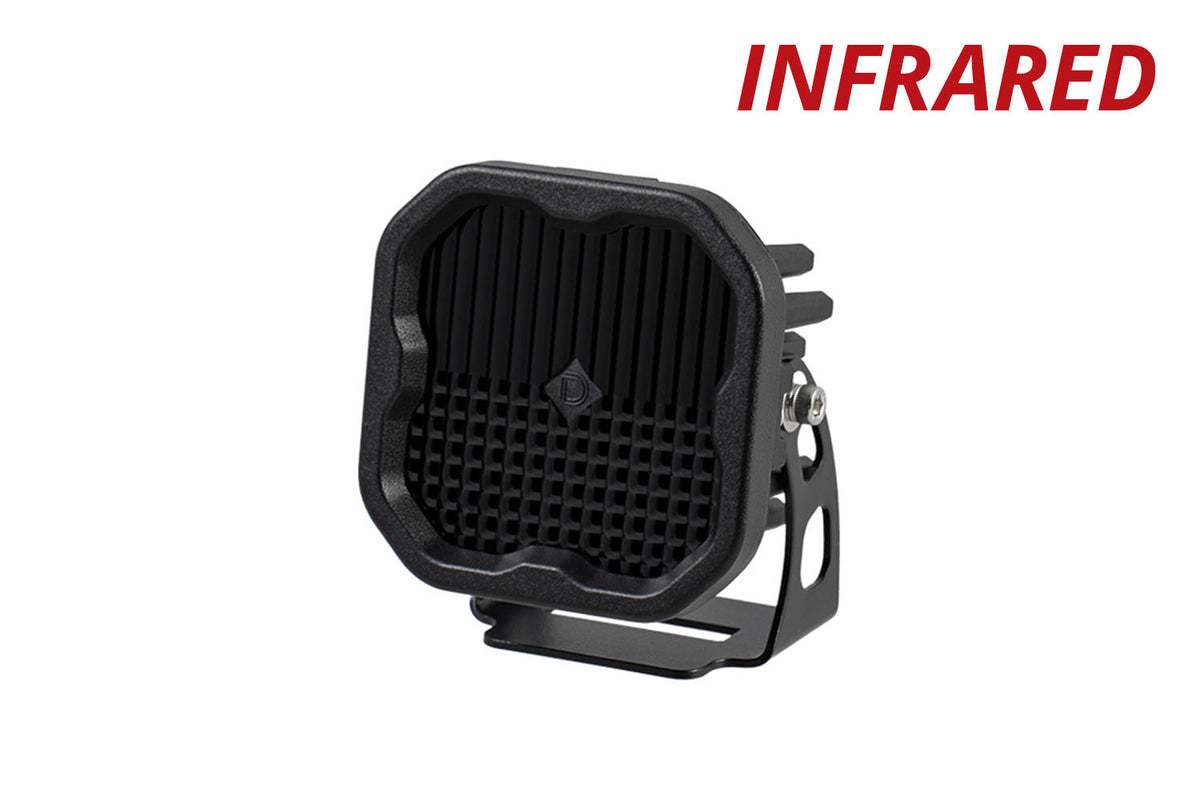

Add purpose-built infrared illumination to your night vision setup with the Diode Dynamics SS3 IR LED Pod. Its Combo beam balances width and distance for forward illumination, with selectable high and low output to suit the scene ahead.

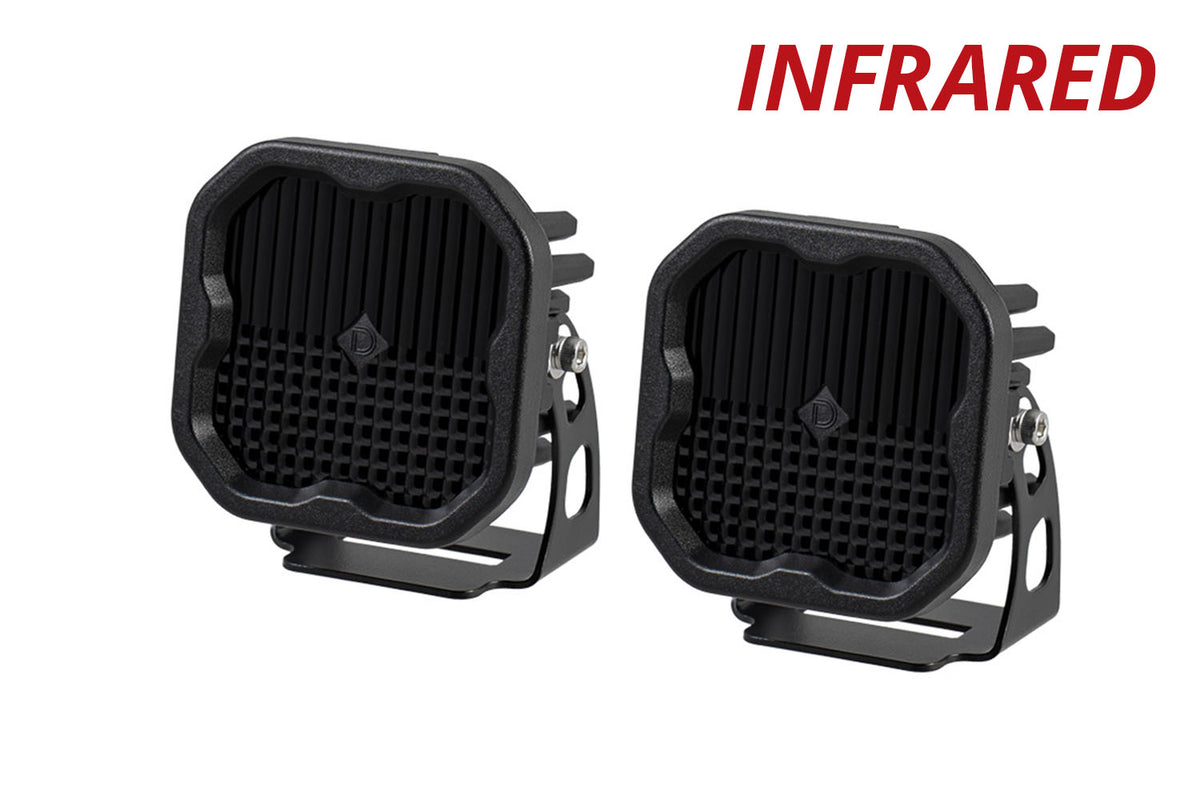

Built for Your Setup. The light operates on 9-16V systems and uses a Deutsch DT 4-Pin connection. Two pods supplied in this package. The red wire controls high IR output, and the blue wire controls low IR output.

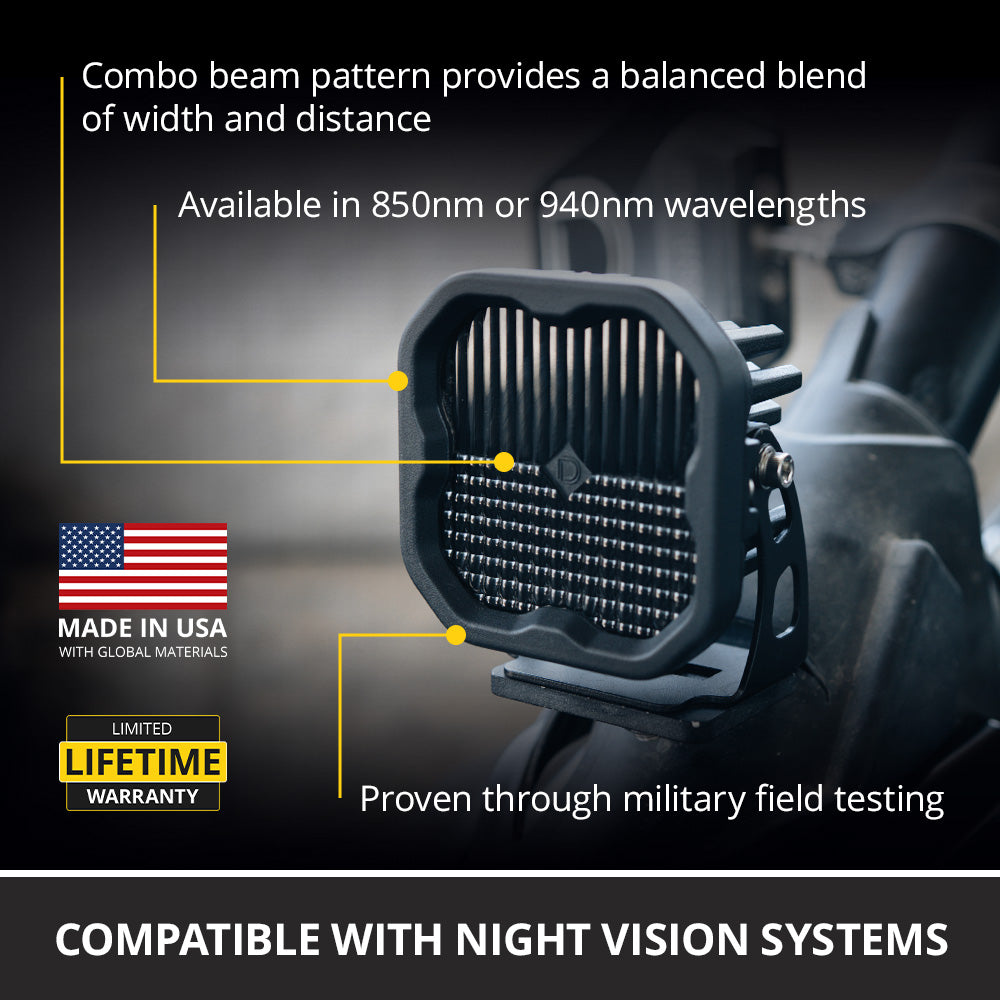

Night Vision Compatibility. Match the wavelength to your equipment. 850nm may show a more noticeable red glow; 940nm offers a lower visible signature.
Proven Reliability. Developed through military field testing. Made in USA with Global Materials.
Infrared Safety. Infrared output may not be visible to the naked eye. Do not look directly into an operating infrared light.
Experience. For more than 20 years, Diode Dynamics has developed purpose-built automotive lighting, engineered, tested, and assembled by our team in the United States.
Specifications
Adjustable Brightness: Yes
Amperage Rating: High: 1.0, Low: 0.26
Bulb Technology: led
Connector Type: Deutsch DT Input
Cooling Method: Passive, Pin-Fin heatsink
Intrusion Rating: IP69K Waterproof, High Pressure
LED Emitter: OSRAM IR
Light Beam Pattern: combo
Material: Sabic Lexan 121R IR Filter
Measured Radiometric Output: High: 11.0, Low: 3.4
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Optional Modes: High and low infrared output
Peak Radiant Intensity: High: 390, Low: 115 mW/sr
Power Level: SS3 IR Pro

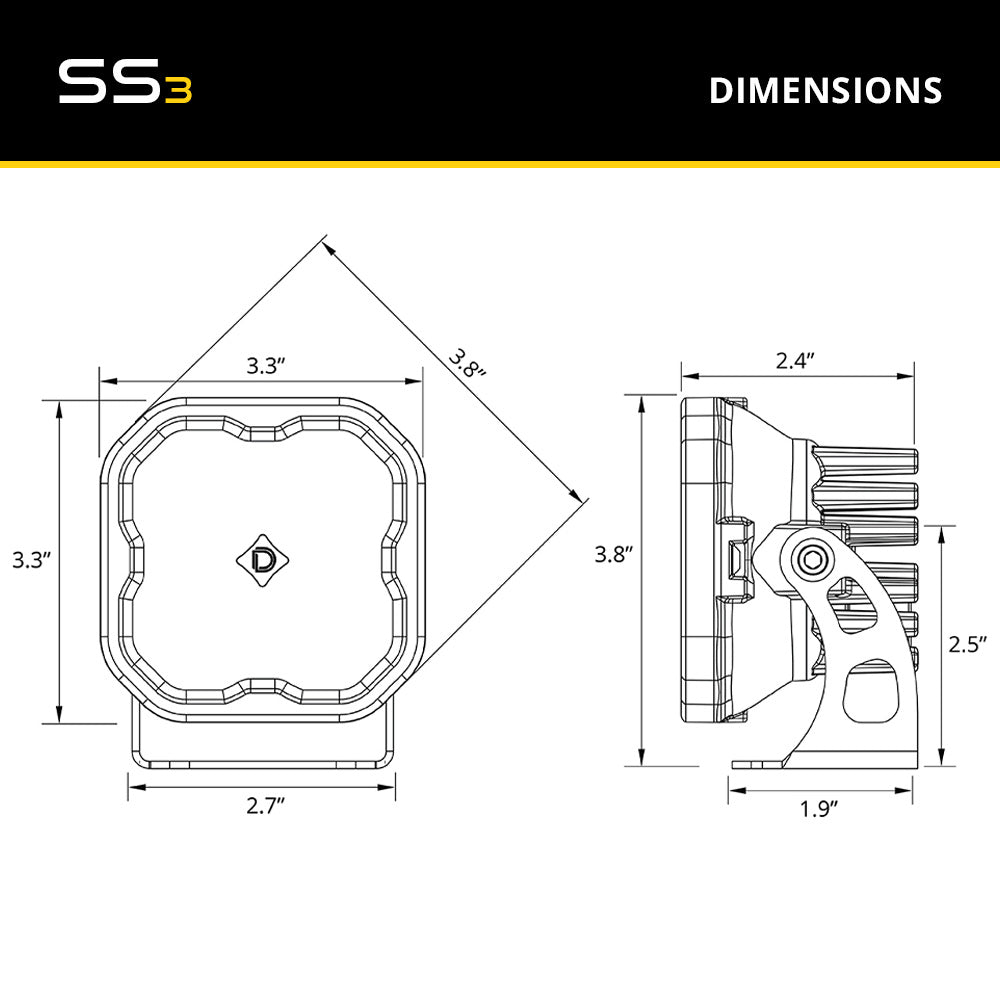

Product Dimensions: 3.3 x 3.3 x 2.4
Prop 65 Yes/No: Yes
Raw Radiometric Output: High: 1250, Low: 320 mW/sr
Universal Or Specific Fit: UNIVERSAL
Voltage: 9-16
Proposition 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
